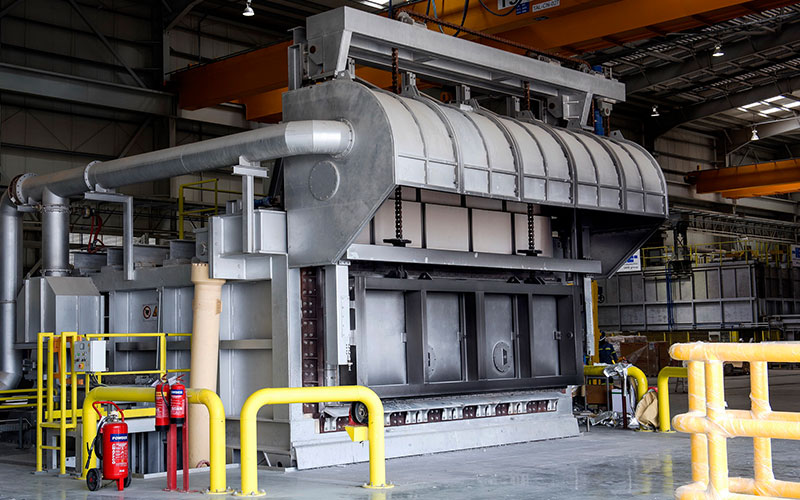

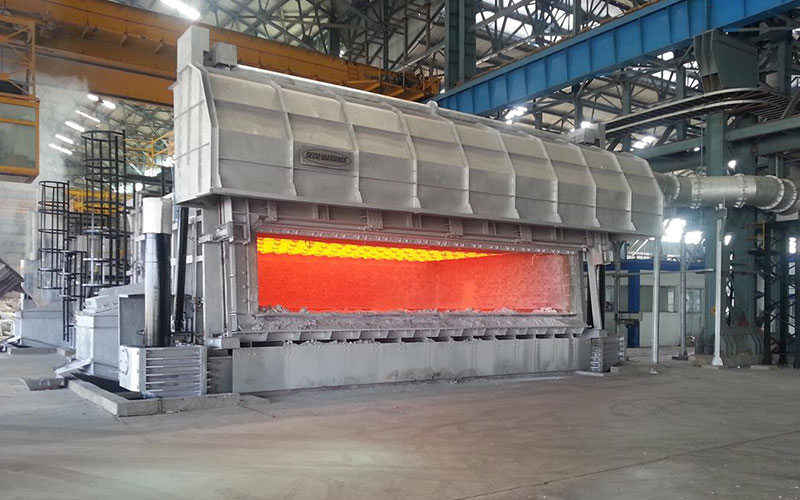

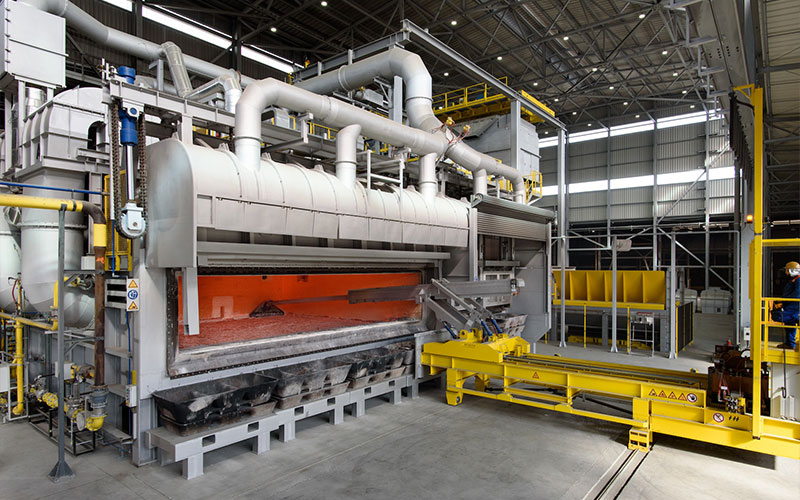

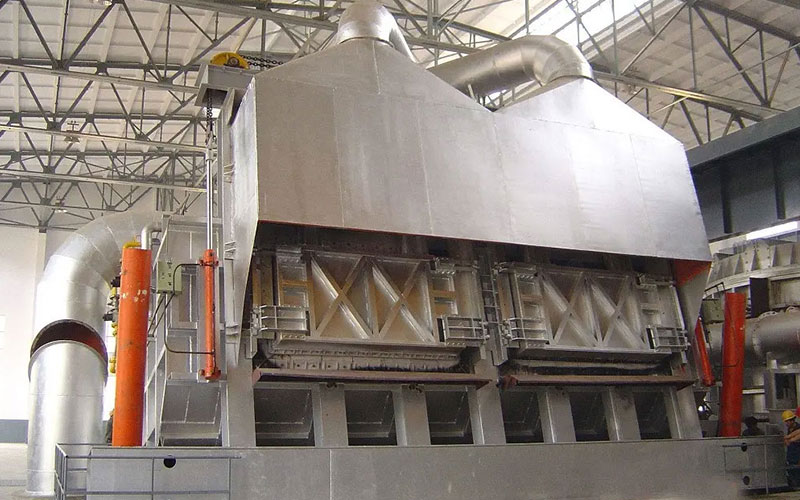

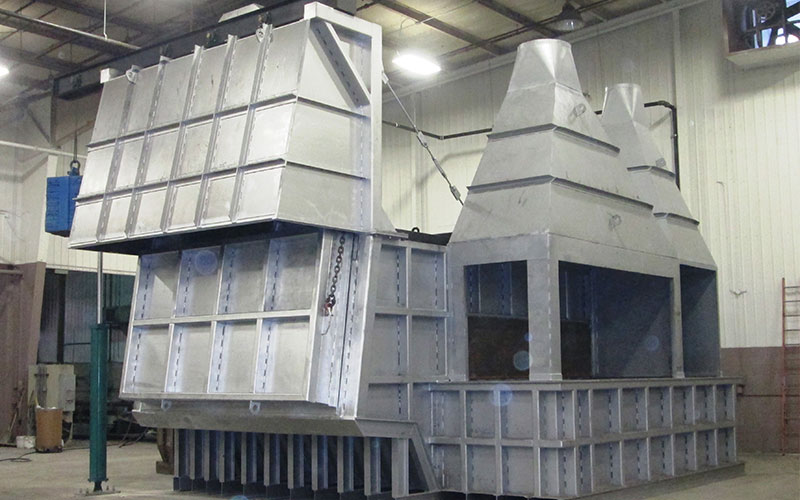

Aluminium Melting /Holding Furnace

This melting and holding furnace is designed for continuous operation and is suitable for aluminum die casting ,aluminum casting industries equipped with” High speed Flame Burners” in the melting furnace.

Holding Furnaces gives advantage when there is production is in large volume. Holding cum Melting furnaces are used for alloying and holding the molten metal at a temperature prior to the casting process. Using a finely tuned furnace hydraulic system, we ensure that desired metal level in launder is precisely maintained.

An appropriately designed furnace bottom guarantees the complete emptying of the bath. The furnaces are equipped with a large cleaning door and smooth inner walls are beneficial for easy cleaning.

The advantages at a glance -

  • Uniform Metal Temperature
  • Low Energy Requirement
  • Long Furnace Life
  • Low Maintenance

SPECIFICATION

  • Fuel Used – L.D.O. / F.O. / Producer Gas/ Coal Gas / Natural Gas
  • Fuel Consumption 90 to 100 Liter. / Ton of F.O
  • Capacity – 500 Kg to 20 Tons
  • Furnace Temperature:1000° C Max.
  • Melting Rate: 1500 Kg. / hr.
  • Mode of Charging :Manual through Hydraulic operated Charging Door
  • Mode of Discharging : Hydraulic Lifting Lip Axis pouring spout

ATTRACTIVE FEATURES

  • No Hard Oxidation Material, the temperature in the holding chambers is kept at about 50° C higher than that of molten metal. This minimizes possibility of formation of hard oxidation of material caused by over temperature condition.
  • Low Energy Cost
  • Long Heater Life
  • Low Maintenance cost & small space utilization
  • Superb working condition
